VALKO - Linea 470
- Packaging line in MAP and Skin-Pack (H10/20) with chain with pushing-trays bars
ADVANTAGES
- Suitable for butcheries, pasta factories, large scale distributions and laboratories
- Type of packaging: MAP (modified atmosphere packaging) and SkinPack on cardboard and tray
- Up to 5 cycles per minute
- Suitable for trays with a maximum height of 100 mm
- Maximal overskin* height 20 mm
- Automatic cycle start
- In stainless steel
- Moulds and vacuum chamber made by aluminium Peraluman
TECHNICAL FEATURES
- Width (mm): 2500
- Depth (mm): 990
- Height (mm): 1660
- Max.Impression (mm): 400×275
- Max. impression with profile cut (mm): 400×275
- Max. height of the tray (mm): 100
- Max. width roll (mm): 470
- Max. ø roll (mm): 220
- Vacuum pump (m³/h): 60×2
- Voltage: 230V 3~ – 400V 3N~
- Power (KW): 3,9
- Weight (kg): 550
INCLUDED
- Quick mould changing
- 1 customized mould with profile cut (MAP or overskin* 10 mm on tray)
- Automatic film waste collection

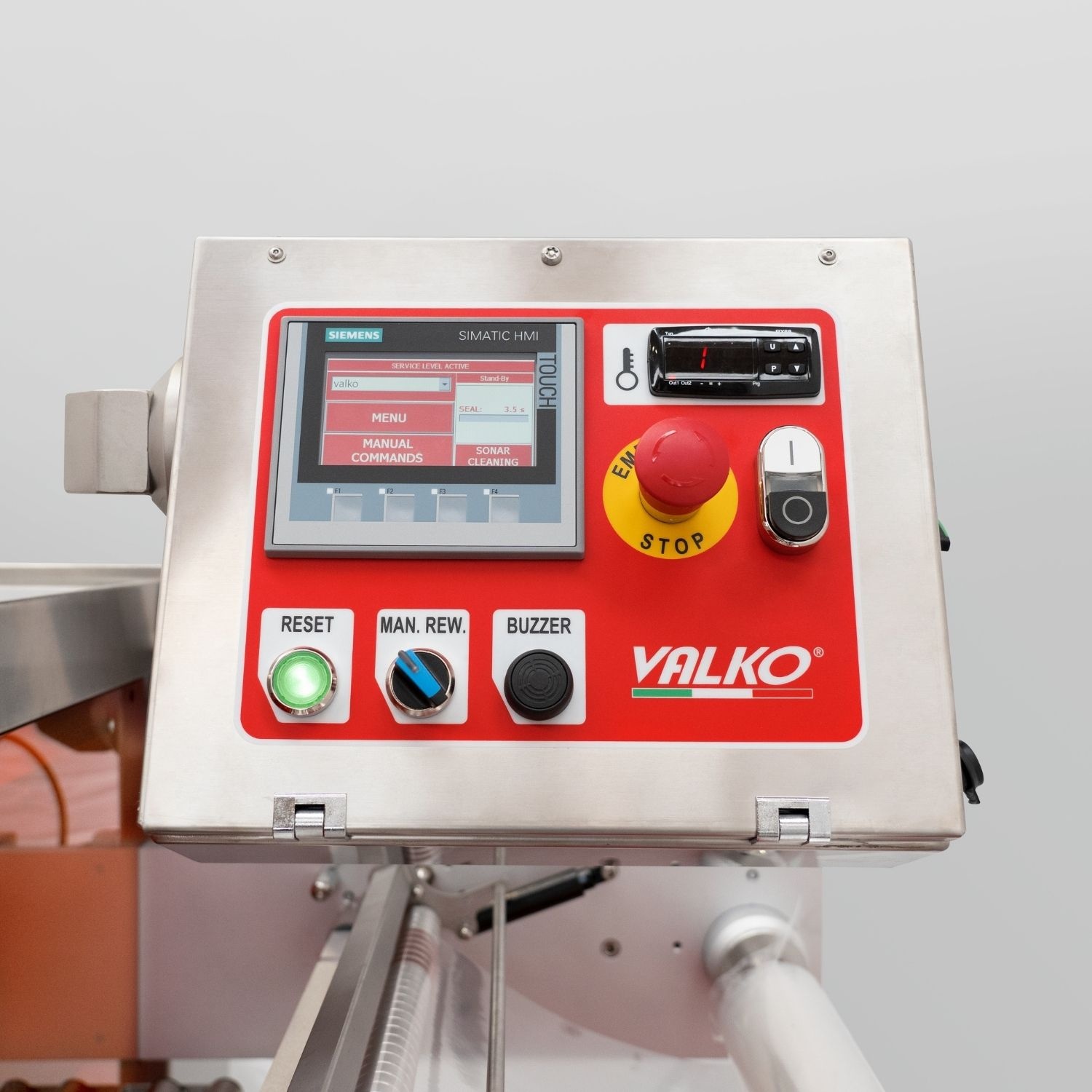

- Control panel touch screen with 5 pre-set programs
- Storage gas tank for modified atmosphere packaging (MAP)
- Safety vane for high oxygen gas mixes (O2 > 21%)

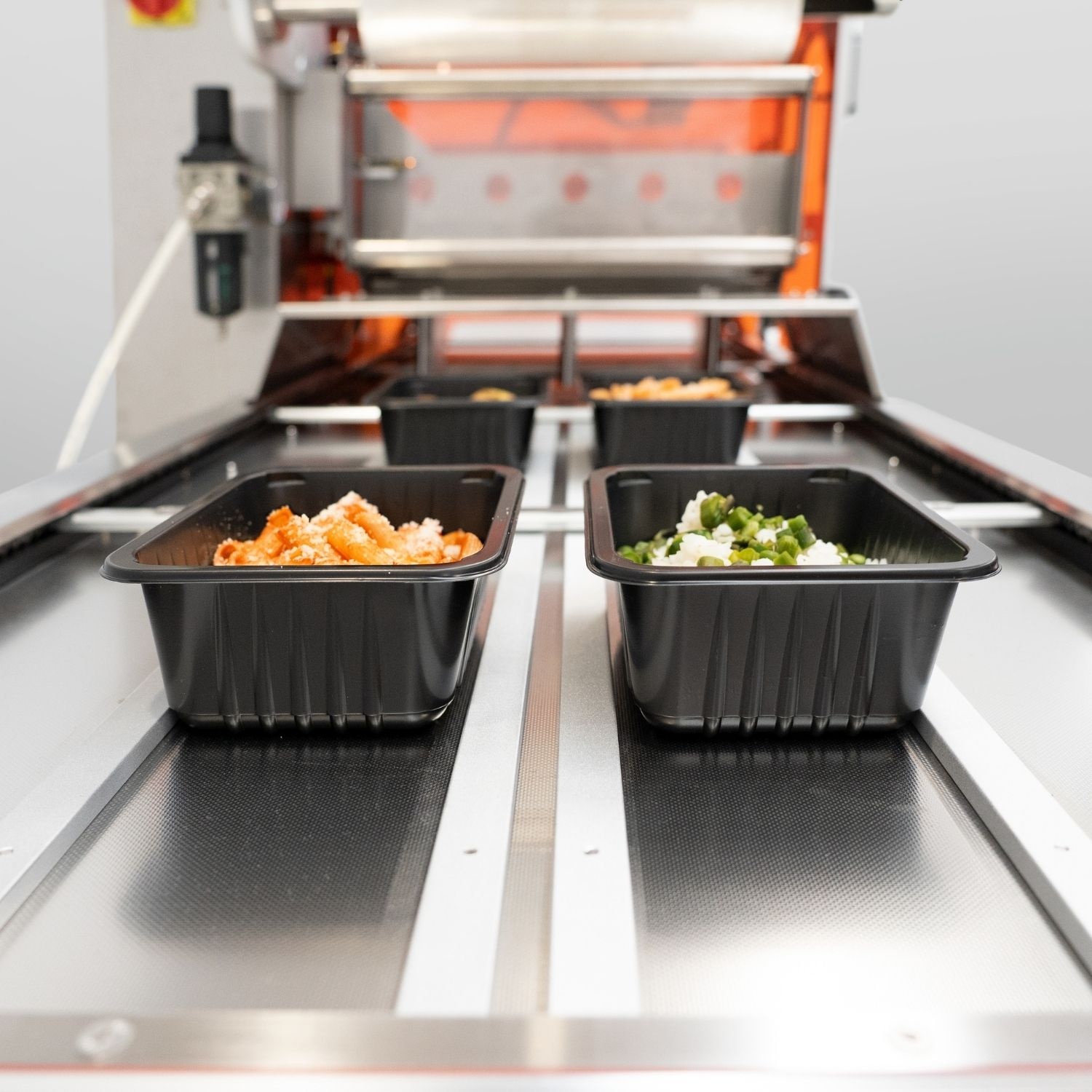

- Tray presence detector on the loading belt
- Air filter (polyester)
- Wheels with brakes
- System for pre-printed film usage
